ISS017-E-20538
| NASA Photo ID | ISS017-E-20538 |
| Focal Length | 400mm |
| Date taken | 2008.10.21 |
| Time taken | 13:05:56 GMT |
Resolutions offered for this image:
1000 x 748 pixels 540 x 404 pixels 720 x 480 pixels 3072 x 2098 pixels 640 x 437 pixels
1000 x 748 pixels 540 x 404 pixels 720 x 480 pixels 3072 x 2098 pixels 640 x 437 pixels
Cloud masks available for this image:
Spacecraft nadir point: 21.8° N, 23.4° E
Photo center point: 22.1° N, 23.7° E
Photo center point by machine learning:
Photo center point: 22.1° N, 23.7° E
Photo center point by machine learning:
Nadir to Photo Center: Northeast
Spacecraft Altitude: 189 nautical miles (350km)
Country or Geographic Name: | LIBYA |
Features: | ARKENU 1 AND 2 STRUCTURES |
| Features Found Using Machine Learning: | |
Cloud Cover Percentage: | 10 (1-10)% |
Sun Elevation Angle: | 36° |
Sun Azimuth: | 237° |
Camera: | Nikon D2Xs Electronic Still Camera |
Focal Length: | 400mm |
Camera Tilt: | 8 degrees |
Format: | 4288E: 4288 x 2848 pixel CMOS sensor, RGBG imager color filter |
Film Exposure: | |
| Additional Information | |
| Width | Height | Annotated | Cropped | Purpose | Links |
|---|---|---|---|---|---|
| 1000 pixels | 748 pixels | No | Yes | Earth From Space collection | Download Image |
| 540 pixels | 404 pixels | Yes | Yes | Earth From Space collection | Download Image |
| 720 pixels | 480 pixels | Yes | Yes | NASA's Earth Observatory web site | Download Image |
| 3072 pixels | 2098 pixels | No | No | Download Image | |
| 640 pixels | 437 pixels | No | No | Download Image |
Download Packaged File
Download a Google Earth KML for this Image
View photo footprint information
Download a GeoTIFF for this photo

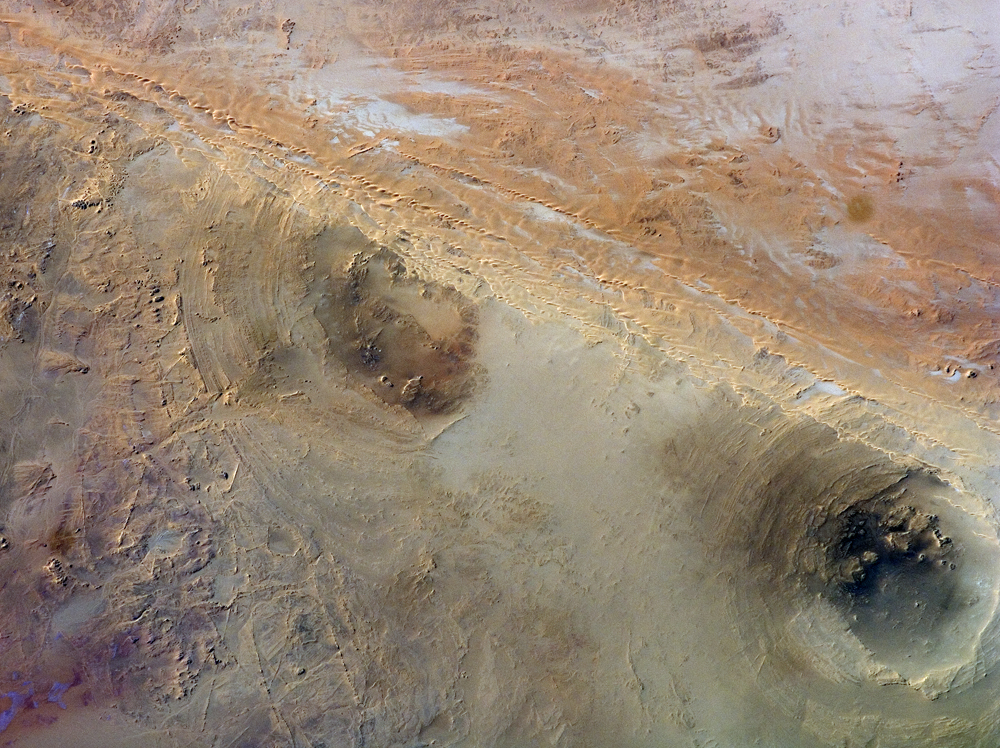

Image Caption: Arkenu Craters 1 and 2, Libya
Geologists often study features on Earth, such as impact craters, to gain insight into processes that occur on other planets. On Earth, more than 150 impact craters have been identified on the continents, but only a few of these are classified as double impact craters. One such pair, the Arkenu Craters in northern Africa, is shown in this image. Arkenu 1 and 2 are double impact structures located in eastern Libya in the Sahara Desert (22 degrees, 4 minutes North; 23 degrees, 45 minutes East). Their respective diameters are approximately 6.8 and 10.3 kilometers (4.2 and 6.4 miles). The craters are unusual in that they both exhibit concentric annular ridge structures (white circles in the image outline the position of the outermost visible ridges). In many terrestrial craters these features are highly eroded and no longer visible.
While the circular structure of these features had been noted, the impact origin hypothesis was strengthened in December 2003 when a field team observed shatter cones--cone-shaped features in rocks created by the shock generated during impact. The field research team also observed large outcrops of impact breccias--a jumble of rock fragments generated at the impact site that are now cemented together into an identifiable rock layer. One theory of the craters' formation proposes they were the result of two impactors, each approximately 500 meters in diameter. The age of the impact event has been dated as having occurred less than 140 million years ago.
While the presence of shatter cones and impact breccias is generally considered to be strong evidence for meteor impact, some scientists now question the interpretation of these features observed at the Arkenu structures. They suggest that the features were caused by erosive and volcanic processes. At present, both craters are being crossed by linear dunes extending northeast-southwest (image upper left to center right). The superposition of the dunes across the annular ridges indicates that they are much younger than the craters.
