  Image: Geographic Location Direction Photo #: ISS034-E-32377 Date: Jan. 2013
Geographic Region: TRINIDAD AND TOBAGO

Ordering information for space photography
IMAGE: gray corner     IMAGE: gray corner

Image: gray corner     Image: gray corner
  View Low-Resolution Image

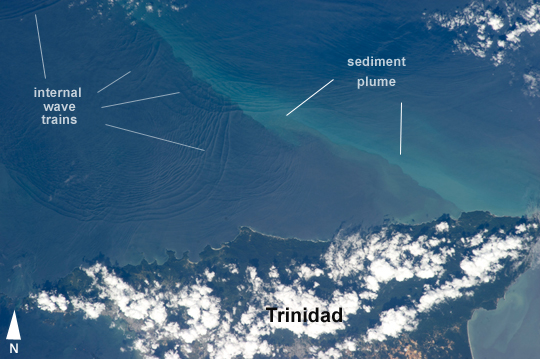

  Internal Waves off Northern Trinidad, Caribbean Sea

This astronaut photograph taken from the International Space Station (ISS) shows the north coast of the island of Trinidad in the southeastern Caribbean Sea, where heating of the land is setting off the growth of cumulus clouds. The light blue northwest-southeast trending plume at image center is sediment from one of the rivers that flows into the sea here. Adjacent to, and appearing to cross the sediment plume, a series of subtle interacting arcs can be seen in the sea. These are known as internal waves which are the surface manifestation of slow waves moving tens of meters beneath the sea surface. These produce enough of an effect on the sea surface to be seen from space, but only where they are enhanced due to reflection of sunlight, or sunglint, back towards the International Space Station.

The image shows at least three sets of internal waves interacting. The most prominent set (image top left) shows a packet of several waves moving from the northwest due to the tidal flow towards the north coast of Trinidad. Two less prominent, younger sets can be seen further out to sea. A very broad set enters the view from the north and northeast, and interacts at image top center with the first set. All the internal waves are probably caused by the shelf break near Tobago (outside the image to top right). The shelf break is the step between shallow seas (around continents and islands) and the deep ocean. It is the line at which tides usually start to generate internal waves.

The sediment plume at image center is embedded in the Equatorial Current (also known as the Guyana Current) and is transporting material to the northwest--in almost the opposite direction to the movement of the internal waves. The current flows strongly from east to west around Trinidad, all the way from equatorial Africa, driven by year-round easterly winds. Seafarers in the vicinity of Trinidad are warned that the current, and its local reverse eddies, make navigation of smaller craft in these waters complicated and sometimes dangerous.
Image: gray corner     Image: gray corner

Images: All Available Images Low-Resolution 222k
Mission: ISS034
Roll - Frame: E - 32377
Geographical Name: TRINIDAD AND TOBAGO
Center Lat x Lon: 10.9N x 61.3W
Film Exposure:   N=Normal exposure, U=Under exposed, O=Over exposed, F=out of Focus
Percentage of Cloud Cover-CLDP: 25
Camera: N5
Camera Tilt: 42   LO=Low Oblique, HO=High Oblique, NV=Near Vertical
Camera Focal Length: 180
Nadir to Photo Center Direction: NW   The direction from the nadir to the center point, N=North, S=South, E=East, W=West
Stereo?:   Y=Yes there is an adjacent picture of the same area, N=No there isn't
Orbit Number:
Date: 20130118   YYYYMMDD
Time: 161648   GMT HHMMSS
Nadir Lat: 9.0N
Latitude of suborbital point of spacecraft
Nadir Lon: 58.6W
Longitude of suborbital point of spacecraft
Sun Azimuth: 186   Clockwise angle in degrees from north to the sun measured at the nadir point
Space Craft Altitude: 217   nautical miles
Sun Elevation: 60   Angle in degrees between the horizon and the sun, measured at the nadir point
Land Views: COAST, ISLAND
Atmosphere Views: PLUME
Man Made Views:
City Views:
Photo is not associated with any sequences
